Product Description

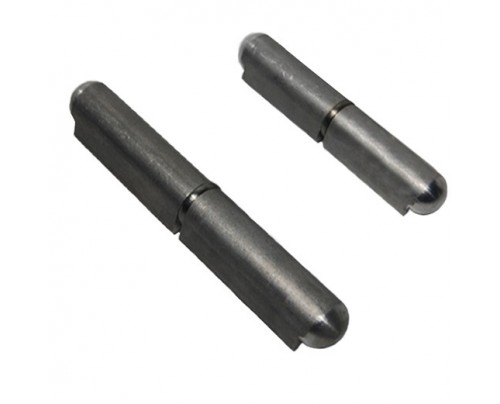

Specifications: Weld on Hinge
Material: steel,stainless steel,aluminum body material of fixed pin optional
Size: 40mm-260mm
ALUMINUM WELD ON HINGE(STAINLESS STEEL FIXED PIN AND WASHER)
Material: Aluminum body with stainless steel fixed pin and stainless steel washer.
Style: With or Without grease fitting (grease nipple) optional.

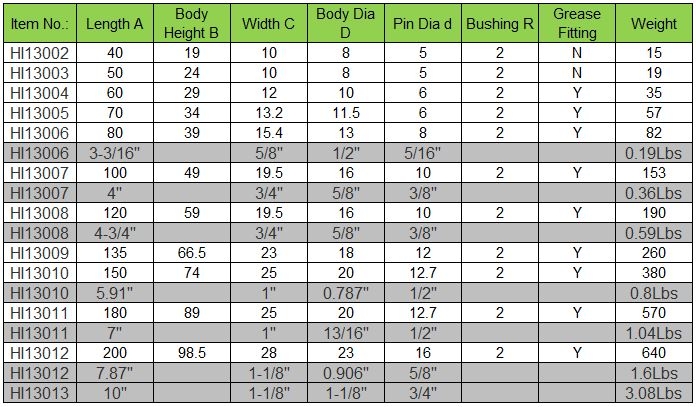

Standard size: 40mm,50mm,60mm,70mm,80mm,100mm,120mm,135mm,150mm,180mm,200mm.
Surface: Self bright.
STEEL WELD ON HINGE(STEELFIXED PIN)
Material:Steel body with steel fixed pin and brass washer;
Style: With or Without grease fitting (grease nipple) optional.Standard Size:40mm,50mm,60mm,70mm,80mm,100mm,120mm,135mm,150mm,180mm,200mm,260mm.
Surface:Mill finish;Deburr sharpes and edges.
Slightly plate corrosion-resistent oil on Steel weld on hinges
STEEL WELD ON HINGE(BRASSFIXED PIN)
Material:Steel body with brass fixed pin and brass washer;
Style: With or Without grease fitting (grease nipple) optional.Standard Size:40mm,50mm,60mm,70mm,80mm,100mm,120mm,135mm,150mm,180mm,200mm,260mm.
Surface:Mill finish;Deburr sharpes and edges.
Slightly plate corrosion-resistent oil on Steel weld on hinges
STAINLESS STEEL WELD ON HINGE(ALL BODY SS304 OR SS316)
Material: Stainless steel body with stainless steel fixed pin and stainless steel washer; SS304 or SS316 optional.
Style: With or Without grease fitting (grease nipple) optional.
Standard size:40mm,50mm,60mm,70mm,80mm,100mm,120mm,135mm,150mm,180mm,200mm.
Surface:Self bright.
Package,Delivery and Payment Terms.
Package: Carton or wooden pallet.
Shipment port: Ningbo,China.
Delivery terms: About 30 days after receiving the advance.
Payment terms: 30% prepaid,70% balance payment againest fax copies of shipping docs,then seller release the original shipping doc to buyer.
